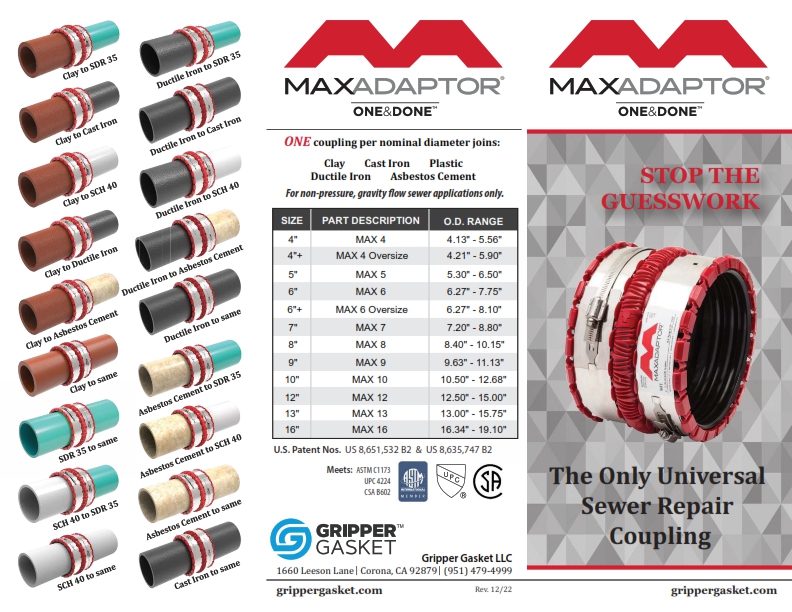

4" MAX Adapter Coupling (4.13" to 5.56" OD)

4" Max Adapter Coupling - OD Range (4.13" to 5.56")
Joins (4" CL/DI/AC/CI/PL to 4" CL/DI/AC/CI/PL)

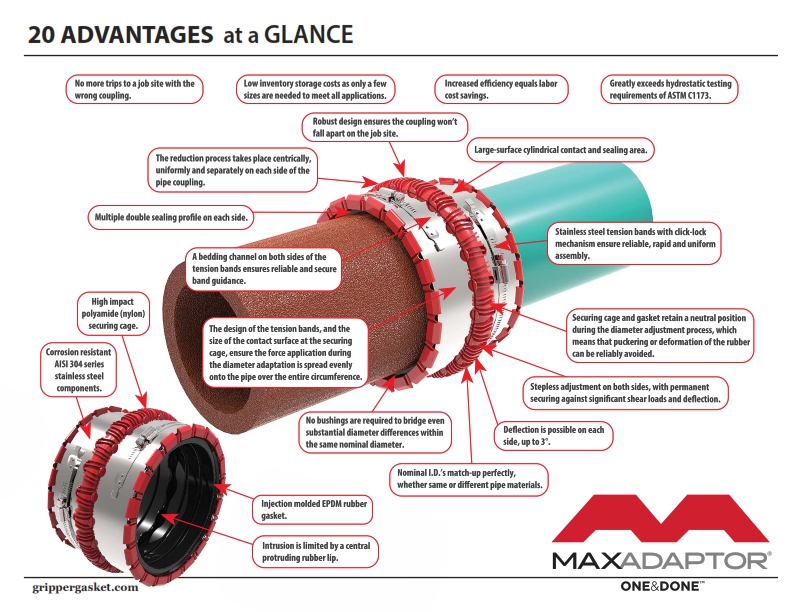

Shielded, universal, high performance sewer repair couplings designed for the repair of most types and sizes of sewer/drainage pipes. One coupling per nominal diameter joins Clay, Ductile Iron, Asbestos Cement, Cast Iron and Plastic. For non-pressure, gravity flow applications only. Recommended for underground installations. Multiple sizes from 4" to 16".

COMPONENTS:

Shield/Clamps: Corrosion Resistant AISI 304 Series Stainless Steel Tension Bands with Click-Lock Clamping System
Securing Cage: High Impact Polymide (Nylon)
Gasket: Injection Molded EPDM Rubber

LEGEND: Clay (CL) Ductile Iron (DI) Asbestos Cement (AC) Cast Iron (CI) Plastic (PL) Concrete (CONC)

Manufacturer Part # 19200
In Store Description: 4" MAX ADAPTOR CPLG 4.13"-5.56"

MSRP

U/M

Price

Core

Part Number

19200

Manufacturer

GRIPPER GASKET LLC

Brand

ETA

Quantity Available

Click for PDF
